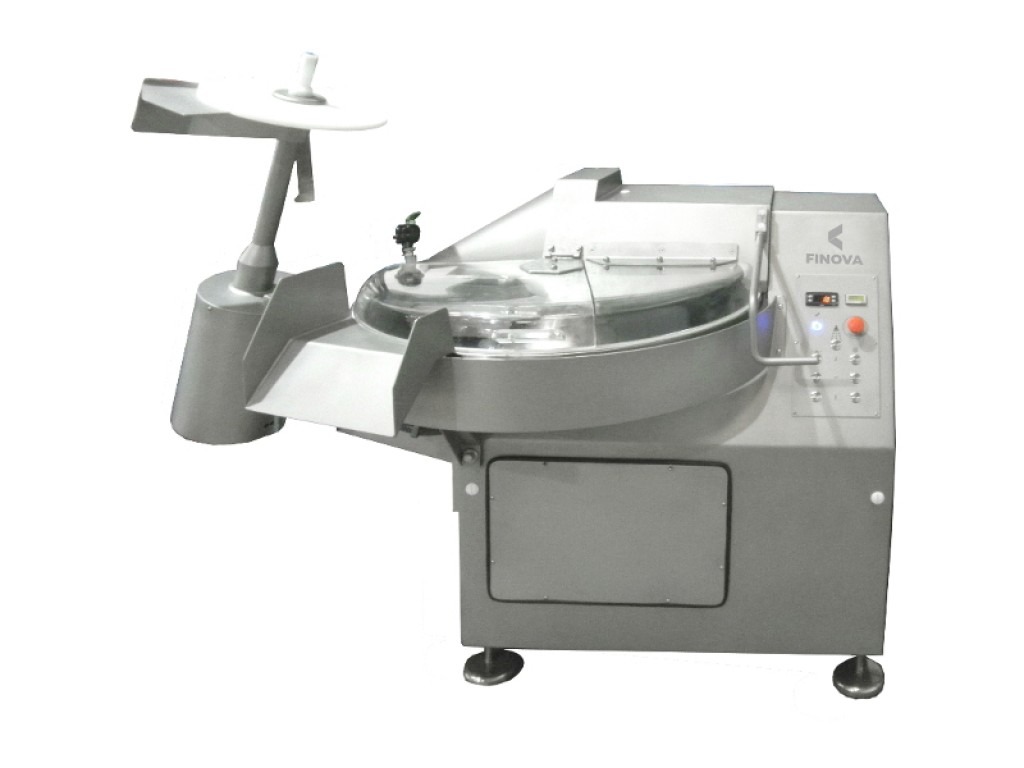

Cutter Mod. Cut-120 C

Description

Cutter Mod. Cut-120 C

Prepared for the elaboration of a great variety of products; coarsely minced, liver paté, thin pastes and emulsions from chilled or frozen meats. Furthermore, it allows ingredients to be incorporated without interrupting the work cycle and to process other foods such as dairy products, fruit and fish.



• Characteristics:

Cutting head for a maximum of 6 blades

Dynamic blade balancing and regulation system.

Trough motors and independent blades.

6 blade speeds can be combined with 2 trough speeds.

Electric emergency brake and soundproof cover (according to CE regulations).

Opening mechanism of the hydraulic lid and discharge.

Manual opening knife cover.

Trough drain plug for cleaning.

Stainless steel electrical cabinet with IP65 protection.

Made of AISI-304L stainless steel.

Push-button control panel.

Electronic lap counter and thermometer.

Includes tools for sharpening and balancing the blades.



• Optional (Not included):

High-speed blade motor (140m/seg. 5.800rpm 48kW.)

Technical data

• Capacity120L / 84kg max.
• Total electric power56.05kW.
• Trough motor0.75/1.5kW.
• Blade motor44kW.
• Discharge motor0.55kW.
• Blades motor speedfrom 1200 to 4200rpm. (100m/seg.)
• Trough motor speed11-22rpm.
• Discharge motor speed123rpm.
• Overall dimensions (LxWxH)2210x1450x1750mm.
• Weight1280kg.
